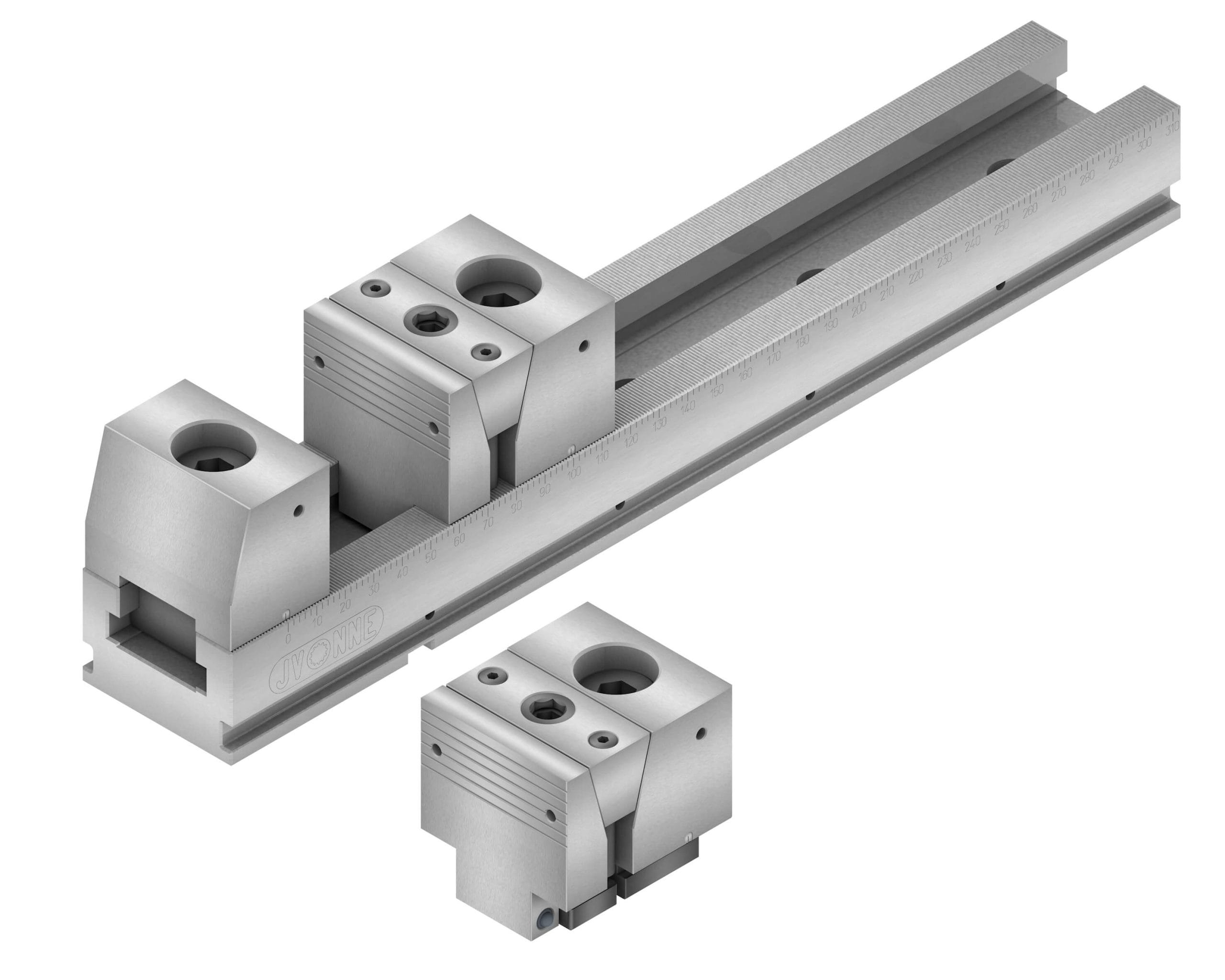

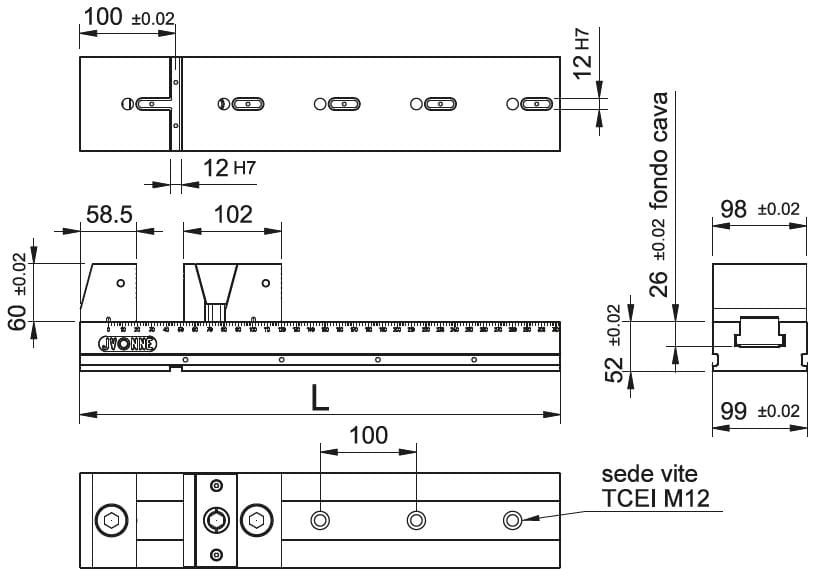

| Morsa Multipresa taglia 100 completo di n° 1 presa pezzo TIPO "AW" (traslante) corsa 4mm | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| COD | L | 1pz/mm | 2pz/mm | 3pz/mm | 4pz/mm | 5pz/mm | 6pz/mm | 7pz/mm | 8pz/mm | daN-Kg |
| J108400AW | 400 | 0-241 | 0-70 | 0-13 | 19 | |||||
| J108500AW | 500 | 0-341 | 0-120 | 0-46 | 0-10 | 22 | ||||
| J108600AW | 600 | 0-441 | 0-170 | 0-80 | 0-35 | 0-20 | 26 | |||
| J108700AW | 700 | 0-541 | 0-220 | 0-113 | 0-60 | 0-28 | 0-6 | 29 | ||
| J108800AW | 800 | 0-641 | 0-270 | 0-147 | 0-85 | 0-48 | 0-23 | 0-5 | 32 | |
| J108900AW | 900 | 0-741 | 0-320 | 0-180 | 0-110 | 0-68 | 0-40 | 0-20 | 0-5 | 35 |
| J108071W | Gruppo ganascia fissa di testa aggiuntiva (additional head jaw unit) | 2 | ||||||||
| J108001AW | Gruppo di spinta aggiuntivo (additional pushing unit) | 5 | ||||||||
| Multi-grip vice size 100 with 1 workpiece grip TYPE "AW" (sliding) 4mm travel | ||||||||||
