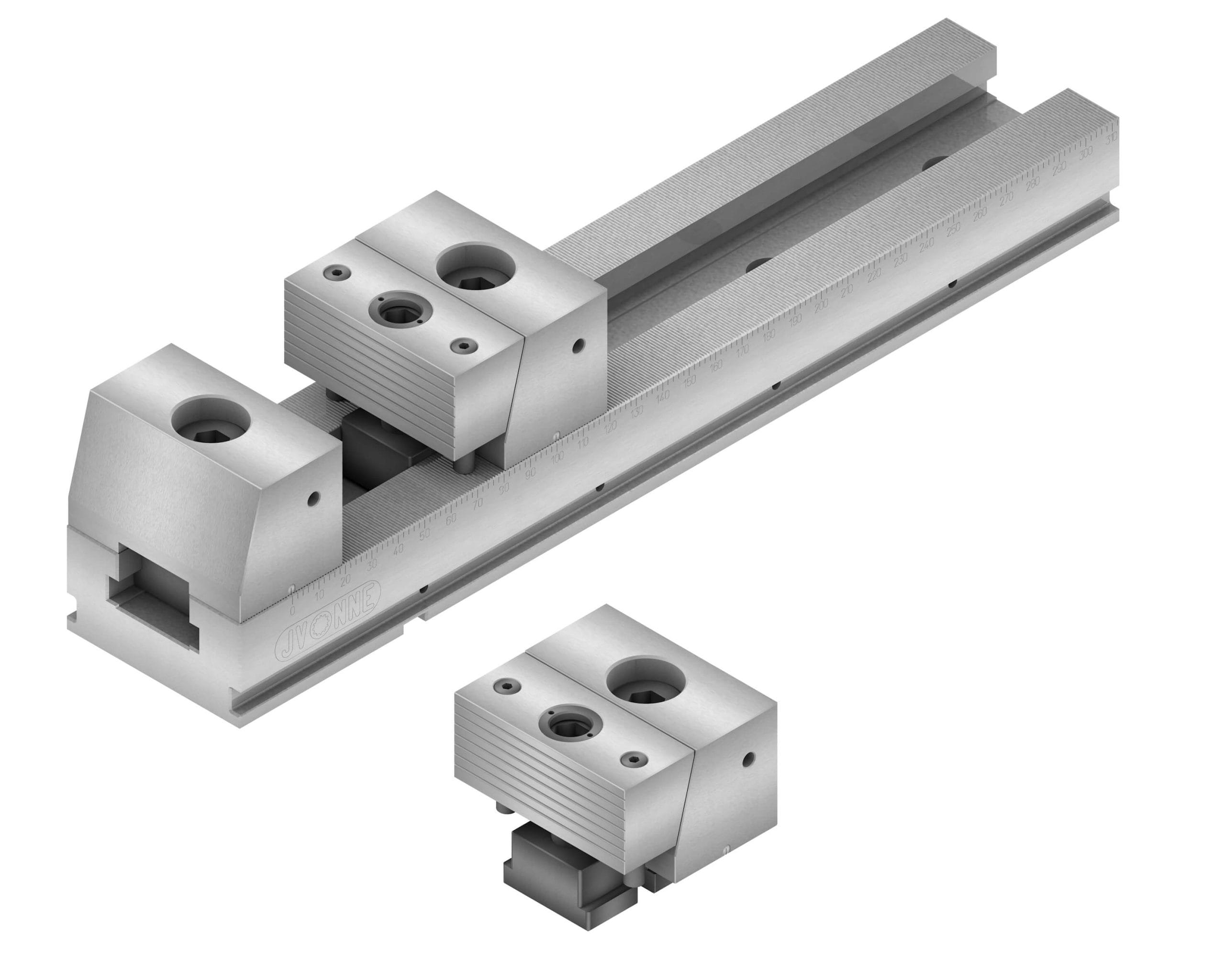

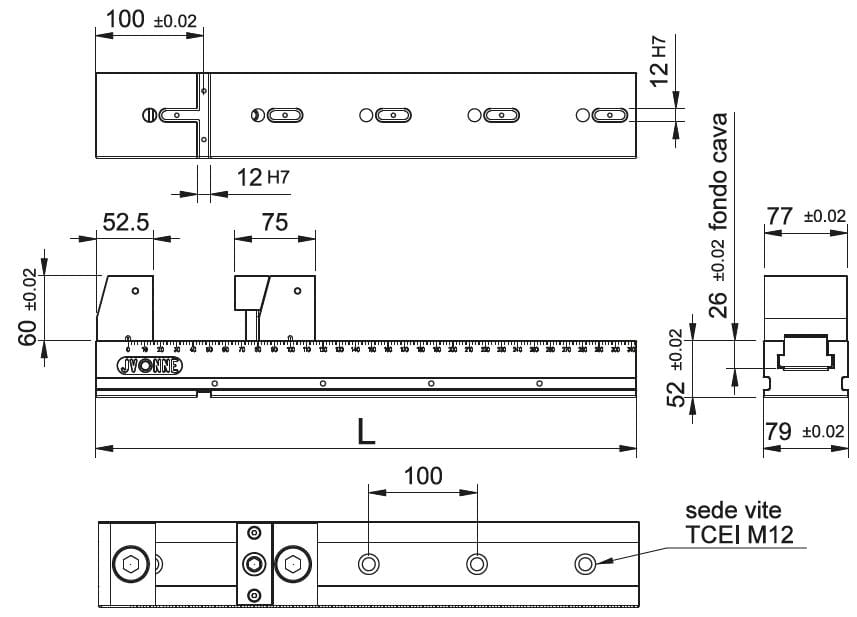

| Morsa Multipresa taglia 100 completo di n° 1 presa pezzo TIPO "BW" (discendente) corsa 2mm | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| COD | L | 1pz/mm | 2pz/mm | 3pz/mm | 4pz/mm | 5pz/mm | 6pz/mm | 7pz/mm | 8pz/mm | daN-Kg |
| J108400BW | 400 | 0-254 | 0-83 | 0-26 | 0-9 | 18 | ||||
| J108500BW | 500 | 0-354 | 0-133 | 0-59 | 0-23 | 0-8 | 21 | |||
| J108600BW | 600 | 0-454 | 0-184 | 0-93 | 0-48 | 0-21 | 0-3 | 25 | ||
| J108700BW | 700 | 0-554 | 0-234 | 0-126 | 0-73 | 0-42 | 0-19 | 0-4 | 28 | |
| J108800BW | 800 | 0-654 | 0-284 | 0-160 | 0-98 | 0-62 | 0-36 | 0-18 | 0-5 | 31 |
| J108900BW | 900 | 0-754 | 0-334 | 0-193 | 0-123 | 0-81 | 0-53 | 0-33 | 0-18 | 36 |
| J1081000BW | 1000 | 0-854 | 0-384 | 0-226 | 0-148 | 0-101 | 0-69 | 0-48 | 0-31 | 37 |
| J108071W | Gruppo ganascia fissa di testa aggiuntiva (additional head jaw unit) | 2 | ||||||||
| J108001BW | Gruppo di spinta aggiuntivo (additional pushing unit) | 4 | ||||||||
| Multi-grip vice size 100 with 1 workpiece grip TYPE "BW" (descending) 2mm travel | ||||||||||
