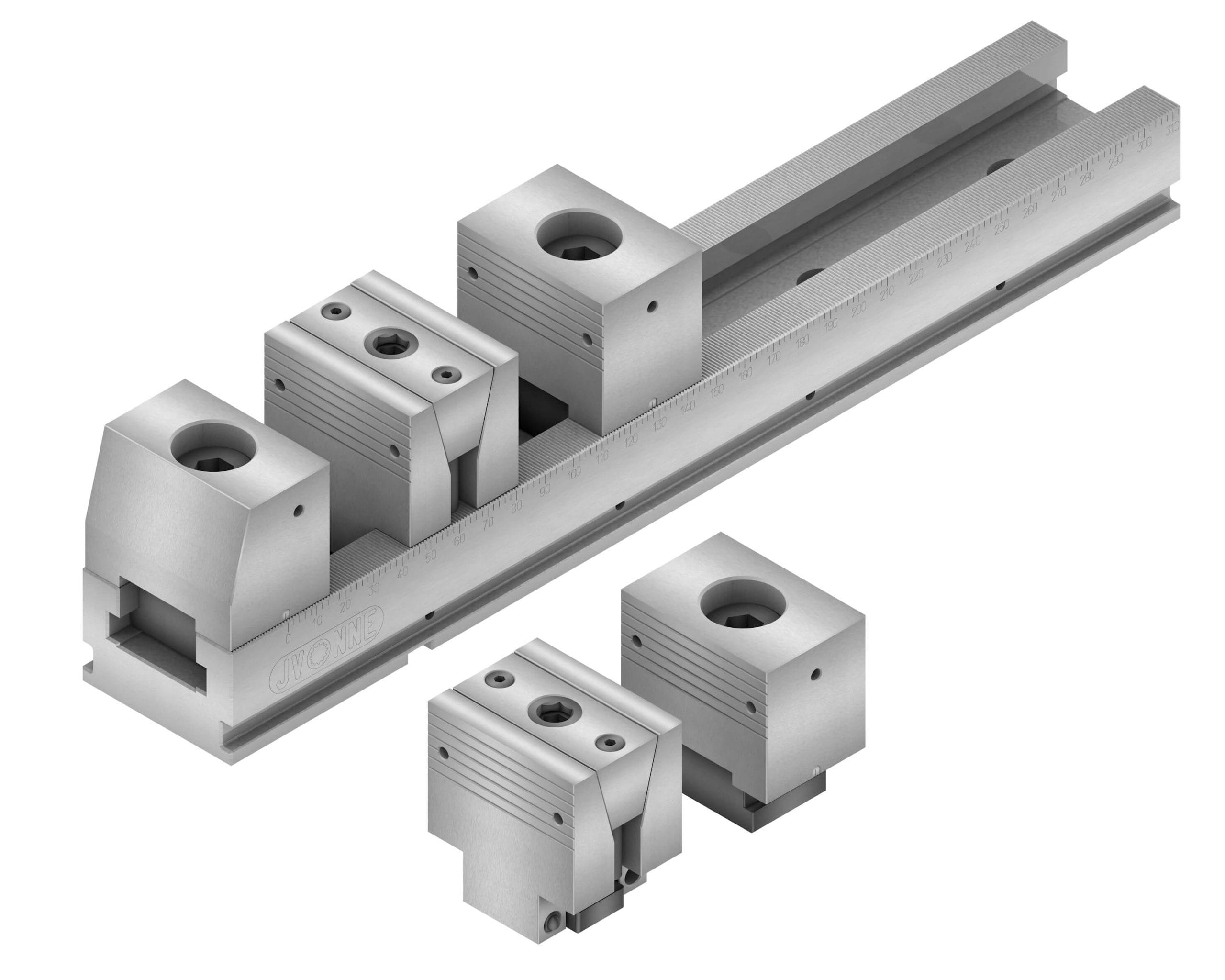

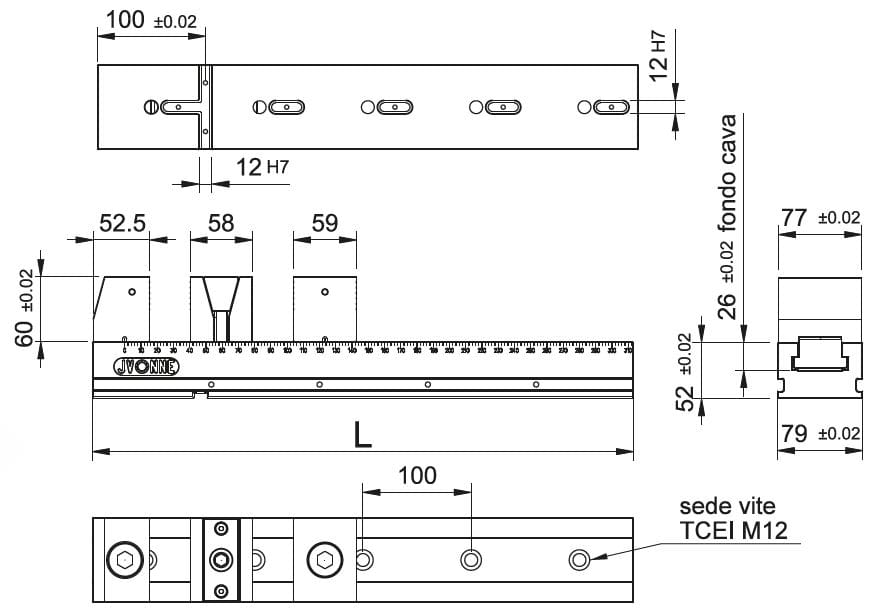

| Morsa Multipresa taglia 100 completo di n° 1 presa pezzo TIPO "CW" (2x1) corsa 2+2mm | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| COD | L | 2pz/mm | 4pz/mm | 6pz/mm | 8pz/mm | 10pz/mm | 12pz/mm | 14pz/mm | 16pz/mm | daN-Kg |
| J108400CW | 400 | 0-107 | 0-32 | 21 | ||||||
| J108500CW | 500 | 0-157 | 0-52 | 0-11 | 24 | |||||
| J108600CW | 600 | 0-207 | 0-72 | 0-27 | 28 | |||||
| J108700CW | 700 | 0-257 | 0-97 | 0-43 | 0-16 | 31 | ||||
| J108800CW | 800 | 0-307 | 0-122 | 0-60 | 0-29 | 0-10 | 34 | |||
| J108900CW | 900 | 0-357 | 0-147 | 0-77 | 0-41 | 0-20 | 0-5 | 37 | ||
| J1081000CW | 1000 | 0-407 | 0-172 | 0-93 | 0-54 | 0-30 | 0-15 | 0-4 | 40 | |
| J108071W | Gruppo ganascia fissa di testa aggiuntiva (additional head jaw unit) | 2 | ||||||||
| J108001CW | Gruppo di spinta aggiuntivo (additional pushing unit) | 6 | ||||||||
| Multi-grip vice size 100 with 1 workpiece grip TYPE "CW" (2x1) 2+2mm travel | ||||||||||
