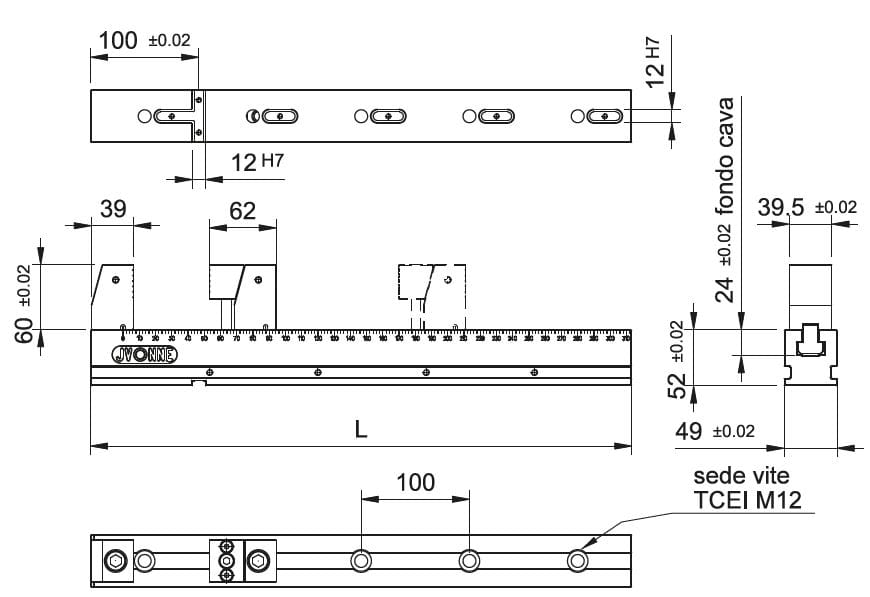

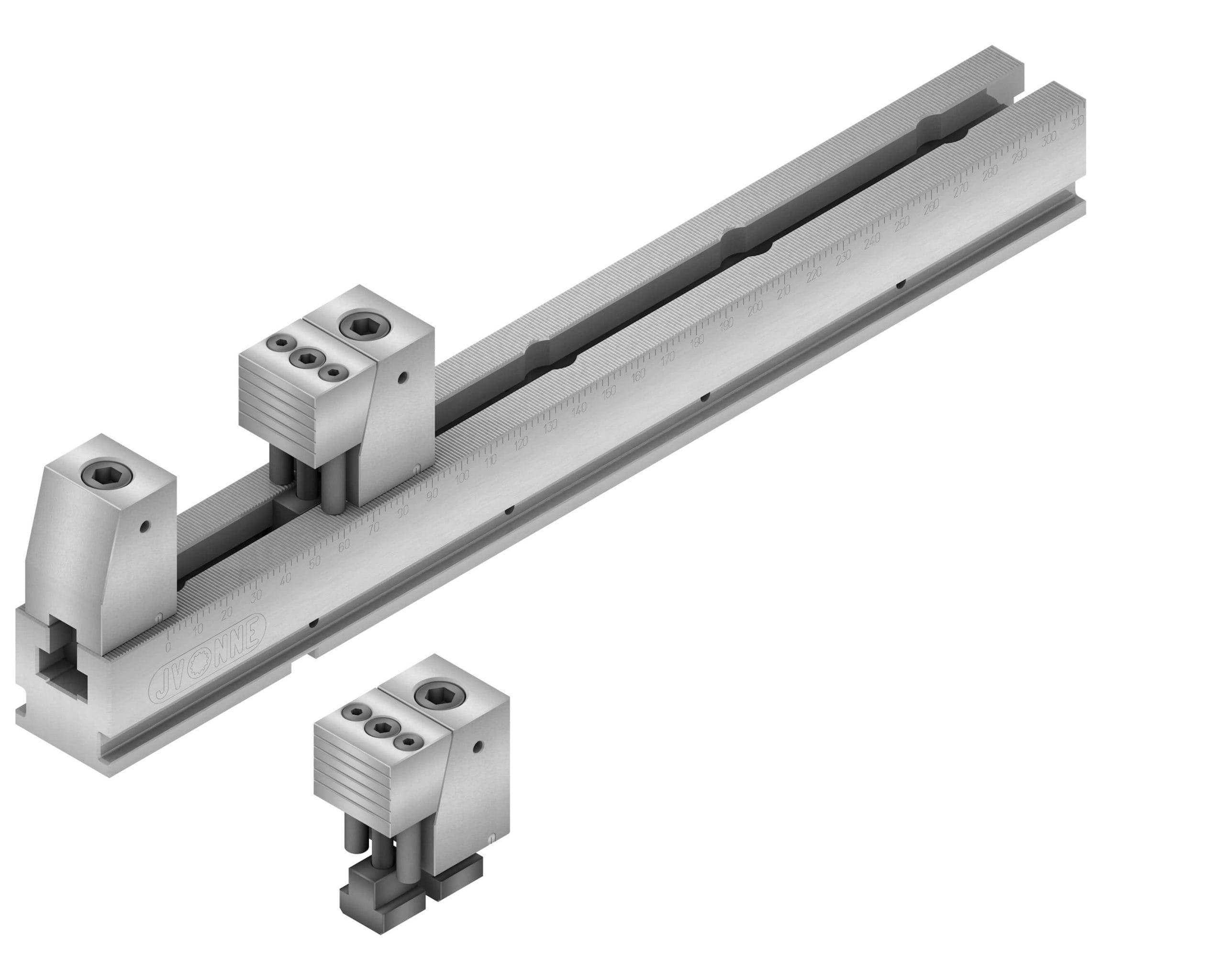

| Morsa Multipresa taglia 50 completo di n° 1 presa pezzo taglia 40 TIPO "BW" (discendente) corsa 2mm | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| COD | L | 1pz/mm | 2pz/mm | 3pz/mm | 4pz/mm | 5pz/mm | 6pz/mm | 7pz/mm | 8pz/mm | 9pz/mm | daN-Kg |
| J504005040BW | 400 | 0-298 | 0-118 | 0-57 | 0-27 | 0-9 | 7,5 | ||||
| J505005040BW | 500 | 0-398 | 0-168 | 0-91 | 0-52 | 0-29 | 0-14 | 0-3 | 9 | ||
| J506005040BW | 600 | 0-498 | 0-218 | 0-124 | 0-77 | 0-49 | 0-31 | 0-17 | 0-7 | 10,5 | |
| J507005040BW | 700 | 0-598 | 0-268 | 0-157 | 0-102 | 0-69 | 0-47 | 0-31 | 0-20 | 0-10 | 12 |
| J508005040BW | 800 | 0-698 | 0-318 | 0-191 | 0-127 | 0-89 | 0-64 | 0-46 | 0-32 | 0-22 | 13 |
| J509005040BW | 900 | 0-798 | 0-368 | 0-224 | 0-152 | 0-109 | 0-81 | 0-60 | 0-45 | 0-33 | 15 |
| J95051W | Gruppo ganascia fissa di testa aggiuntiva (additional head jaw unit) | 0,6 | |||||||||
| J40001AW | Gruppo di spinta aggiuntivo (additional pushing unit) | 1 | |||||||||
| Multi-grip vice size 50 with 1 workpiece grip size 40 TYPE "BW" (descending) 2mm travel | |||||||||||
