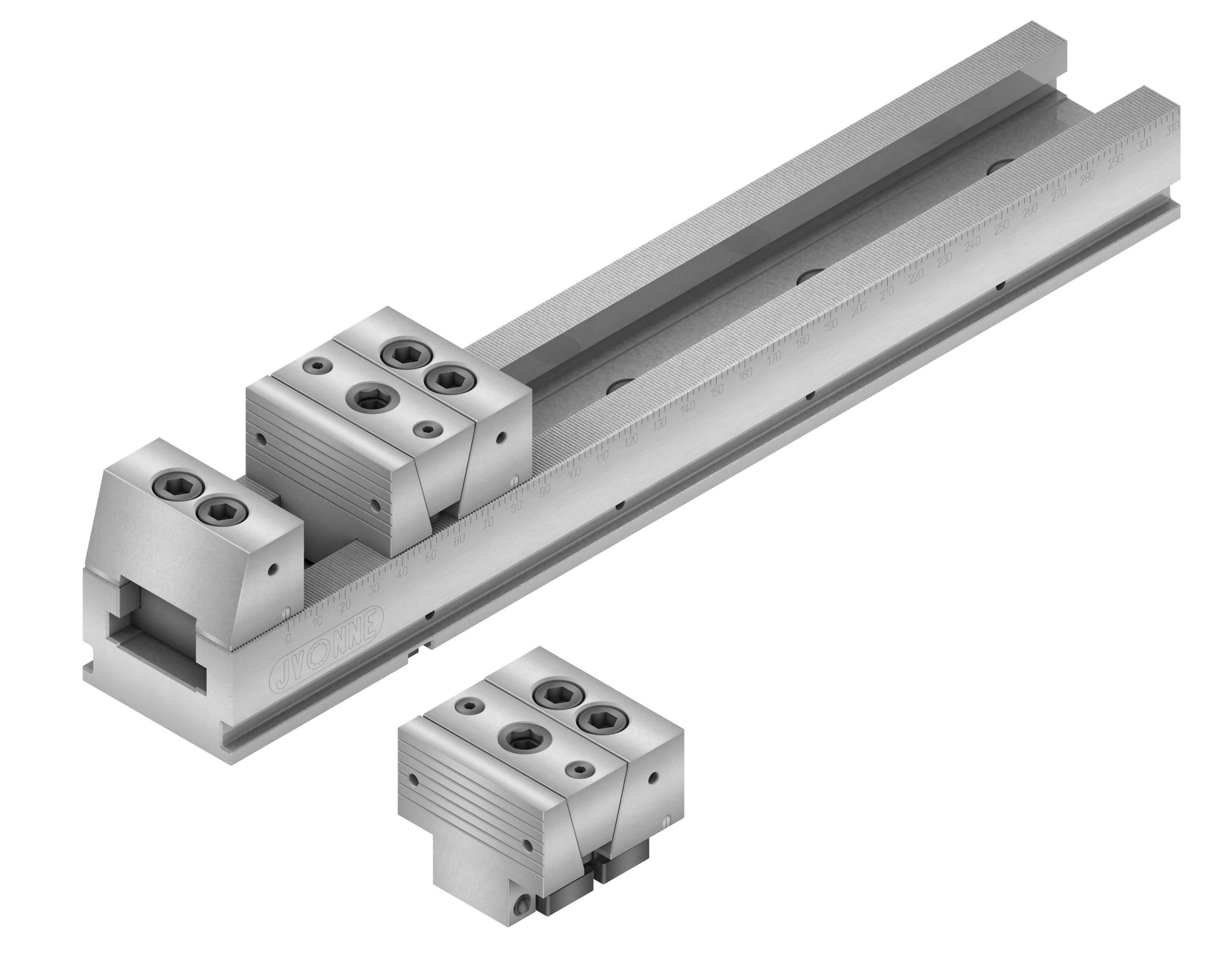

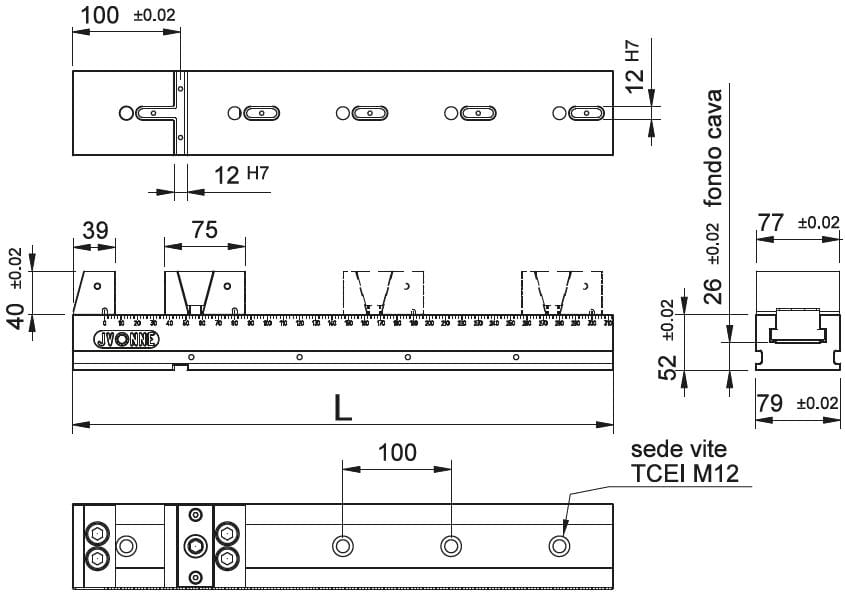

| Morsa Multipresa taglia 80 completo di n° 1 presa pezzo TIPO "A" (traslante) corsa 4mm | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| COD | L | 1pz/mm | 2pz/mm | 3pz/mm | 4pz/mm | 5pz/mm | 6pz/mm | 7pz/mm | 8pz/mm | 9pz/mm | daN-Kg |
| J80400A | 400 | 0-285 | 0-105 | 0-44 | 0-14 | 12 | |||||
| J80500A | 500 | 0-385 | 0-155 | 0-78 | 0-39 | 0-16 | 14 | ||||
| J80600A | 600 | 0-485 | 0-205 | 0-111 | 0-64 | 0-36 | 0-18 | 0-4 | 16 | ||
| J80700A | 700 | 0-585 | 0-255 | 0-144 | 0-89 | 0-56 | 0-34 | 0-18 | 0-7 | 18 | |
| J80800A | 800 | 0-685 | 0-305 | 0-178 | 0-114 | 0-76 | 0-51 | 0-33 | 0-19 | 0-9 | 20 |
| J80900A | 900 | 0-785 | 0-355 | 0-211 | 0-139 | 0-96 | 0-68 | 0-47 | 0-32 | 0-20 | 23 |
| J94051 | Gruppo ganascia fissa di testa aggiuntiva (additional head jaw unit) | 1 | |||||||||
| J80001A | Gruppo di spinta aggiuntivo (additional pushing unit) | 2,1 | |||||||||
| Multi-grip vice size 80 with 1 workpiece grip TYPE "A" (sliding) 4mm travel | |||||||||||
