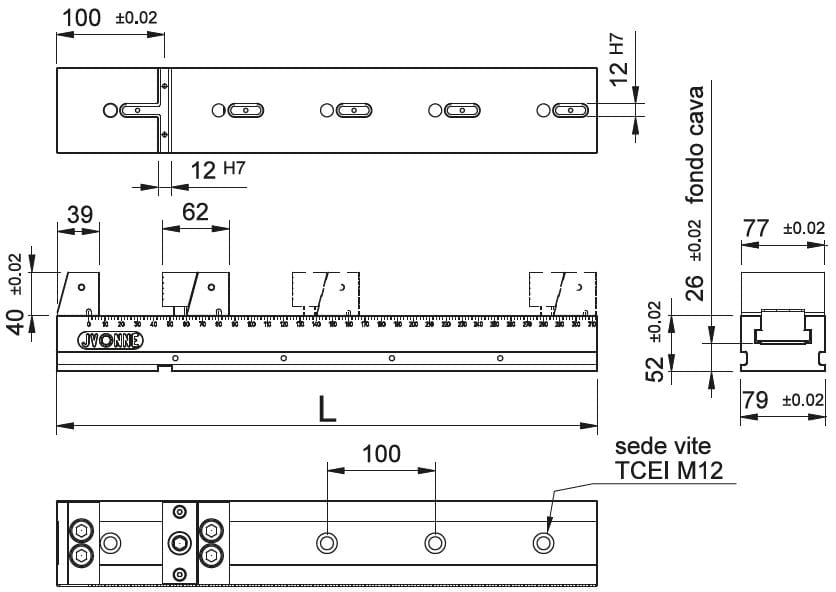

| Morsa Multipresa taglia 80 completo di n° 1 presa pezzo TIPO "B" (discendente) corsa 2mm | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| COD | L | 1pz/mm | 2pz/mm | 3pz/mm | 4pz/mm | 5pz/mm | 6pz/mm | 7pz/mm | 8pz/mm | 9pz/mm | daN-Kg |
| J80400B | 400 | 0-298 | 0-118 | 0-57 | 0-27 | 0-9 | 11 | ||||
| J80500B | 500 | 0-398 | 0-168 | 0-91 | 0-52 | 0-29 | 0-14 | 0-3 | 13 | ||
| J80600B | 600 | 0-498 | 0-218 | 0-124 | 0-77 | 0-49 | 0-31 | 0-17 | 0-7 | 15 | |
| J80700B | 700 | 0-598 | 0-268 | 0-157 | 0-102 | 0-69 | 0-47 | 0-31 | 0-20 | 0-10 | 18 |
| J80800B | 800 | 0-698 | 0-318 | 0-191 | 0-127 | 0-89 | 0-64 | 0-46 | 0-32 | 0-22 | 20 |
| J80900B | 900 | 0-798 | 0-368 | 0-224 | 0-152 | 0-109 | 0-81 | 0-60 | 0-45 | 0-33 | 22 |
| J94051 | Gruppo ganascia fissa di testa aggiuntiva (additional head jaw unit) | 1 | |||||||||
| J80001B | Gruppo di spinta aggiuntivo (additional pushing unit) | 1,7 | |||||||||
| Multi-grip vice size 80 with 1 workpiece grip TYPE "B" (descending) 2mm travel | |||||||||||
