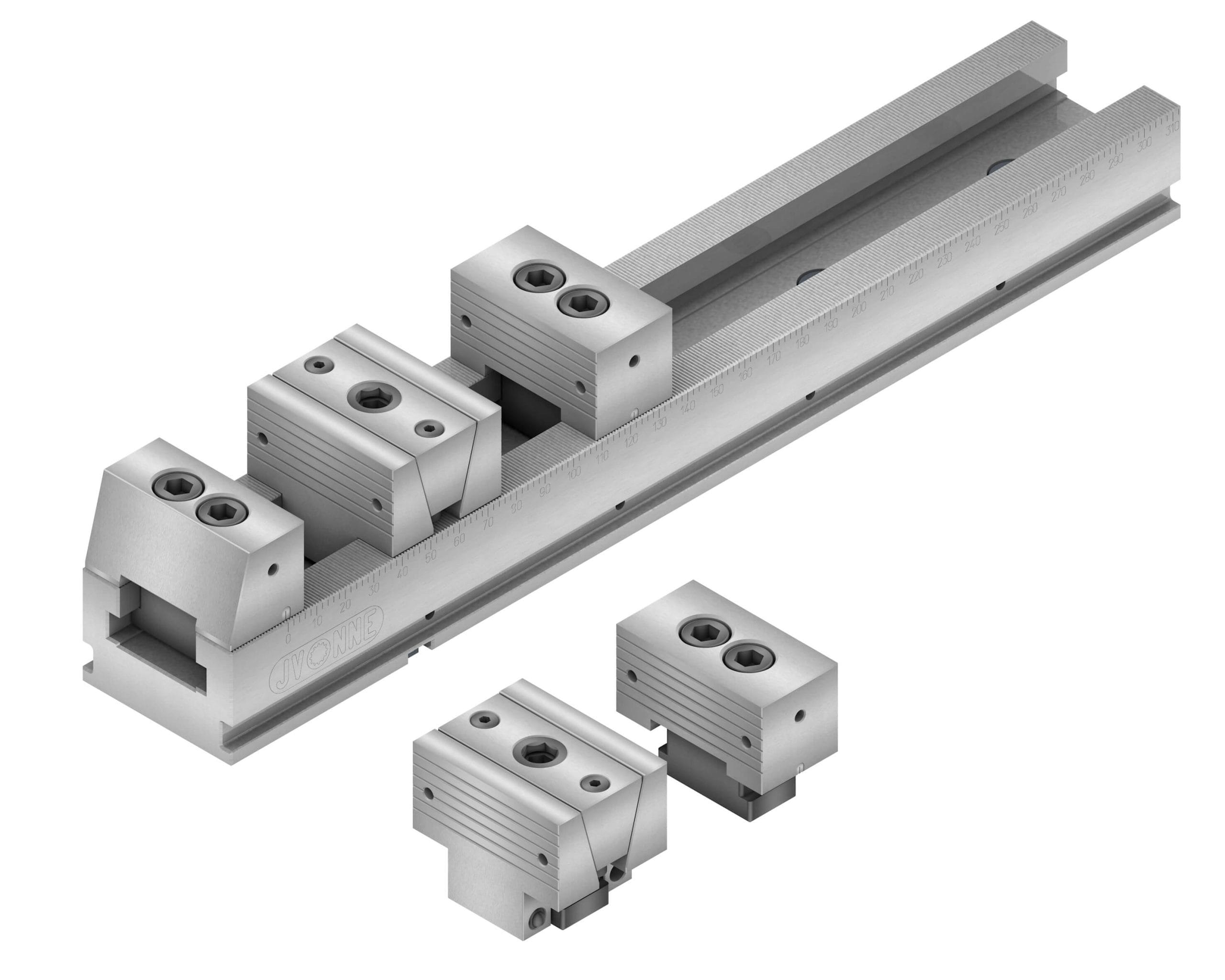

| Morsa Multipresa taglia 80 completo di n° 1 presa pezzo TIPO "C" (2x1) corsa 2+2mm | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| COD | L | 2pz/mm | 4pz/mm | 6pz/mm | 8pz/mm | 10pz/mm | 12pz/mm | 14pz/mm | 16pz/mm | 18pz/mm | daN-Kg |
| J80400C | 400 | 0-130 | 0-40 | 0-10 | 13 | ||||||
| J80500C | 500 | 0-180 | 0-65 | 0-27 | 0-8 | 15 | |||||
| J80600C | 600 | 0-230 | 0-90 | 0-44 | 0-22 | 0-6 | 17 | ||||
| J80700C | 700 | 0-280 | 0-115 | 0-60 | 0-33 | 0-16 | 0-5 | 19 | |||
| J80800C | 800 | 0-330 | 0-140 | 0-77 | 0-45 | 0-26 | 0-14 | 0-5 | 20 | ||
| J80900C | 900 | 0-380 | 0-165 | 0-94 | 0-58 | 0-36 | 0-22 | 0-12 | 0-4 | 24 | |
| J94051 | Gruppo ganascia fissa di testa aggiuntiva (additional head jaw unit) | 1 | |||||||||
| J80001C | Gruppo di spinta aggiuntivo (additional pushing unit) | 2,8 | |||||||||
| Multi-grip vice size 80 with 1 workpiece grip TYPE "C" (2x1) 2+2mm travel | |||||||||||
Jvonne ensures a complete support service: from the first contact to the delivery of the machinery, from the installation to the start-up of the machine or plant.
Contact us to find out more!
