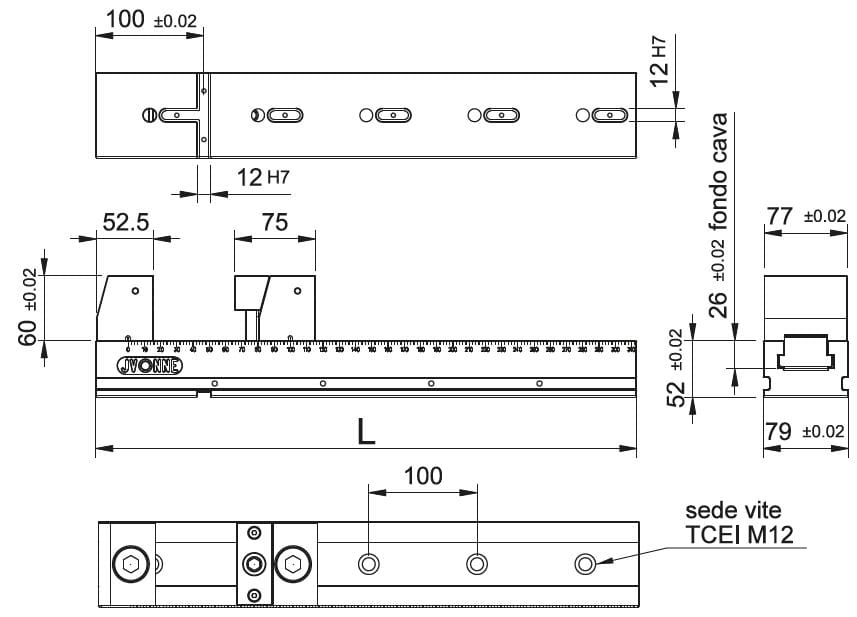

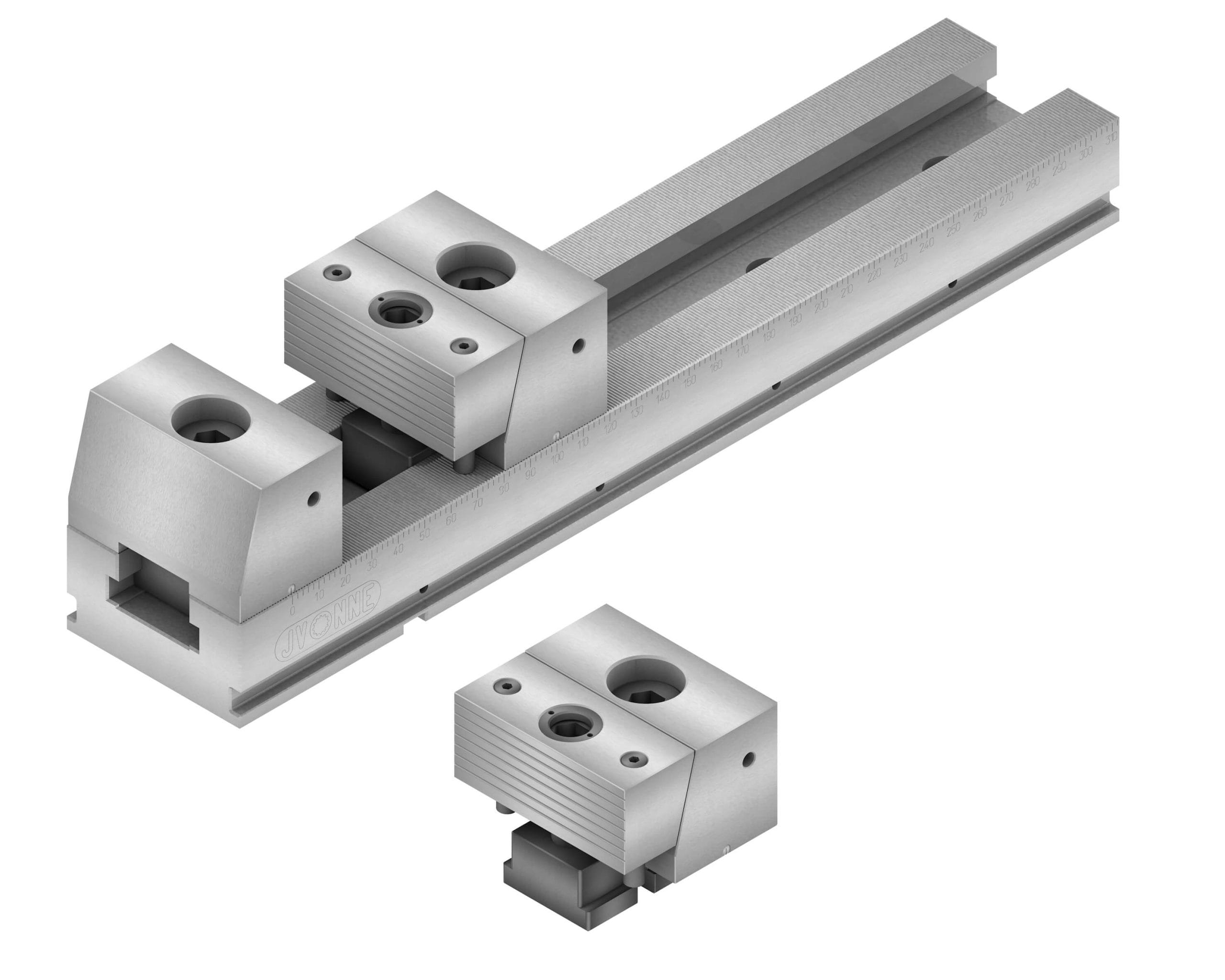

| Morsa Multipresa taglia 80 completo di n° 1 presa pezzo TIPO "BW" (discendente) corsa 2mm | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| COD | L | 1pz/mm | 2pz/mm | 3pz/mm | 4pz/mm | 5pz/mm | 6pz/mm | 7pz/mm | 8pz/mm | 9pz/mm | daN-Kg |
| J80400BW | 400 | 0-272 | 0-98 | 0-40 | 0-9 | 18 | |||||
| J80500BW | 500 | 0-372 | 0-153 | 0-74 | 0-36 | 0-14 | 21 | ||||
| J80600BW | 600 | 0-472 | 0-199 | 0-107 | 0-62 | 0-34 | 0-16 | 25 | |||
| J80700BW | 700 | 0-572 | 0-249 | 0-140 | 0-87 | 0-65 | 0-33 | 0-17 | 28 | ||
| J80800BW | 800 | 0-672 | 0-299 | 0-174 | 0-112 | 0-75 | 0-50 | 0-32 | 0-18 | 31 | |
| J80900BW | 900 | 0-772 | 0-349 | 0-207 | 0-137 | 0-94 | 0-68 | 0-46 | 0-31 | 36 | |
| J94071W | Gruppo ganascia fissa di testa aggiuntiva (additional head jaw unit) | 2 | |||||||||
| J80001BW | Gruppo di spinta aggiuntivo (additional pushing unit) | 4 | |||||||||
| Multi-grip vice size 80 with 1 workpiece grip TYPE "BW" (descending) 2mm travel | |||||||||||
