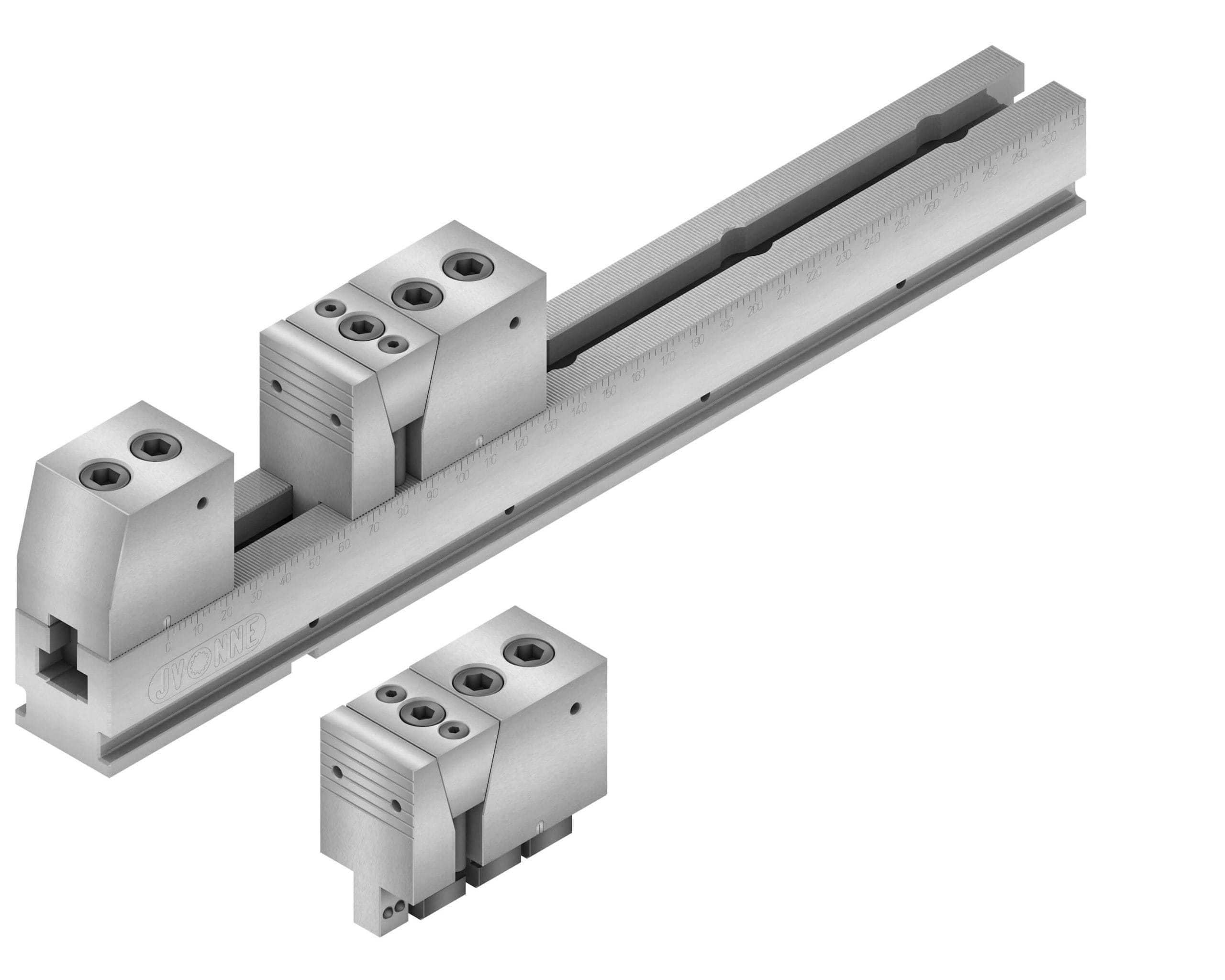

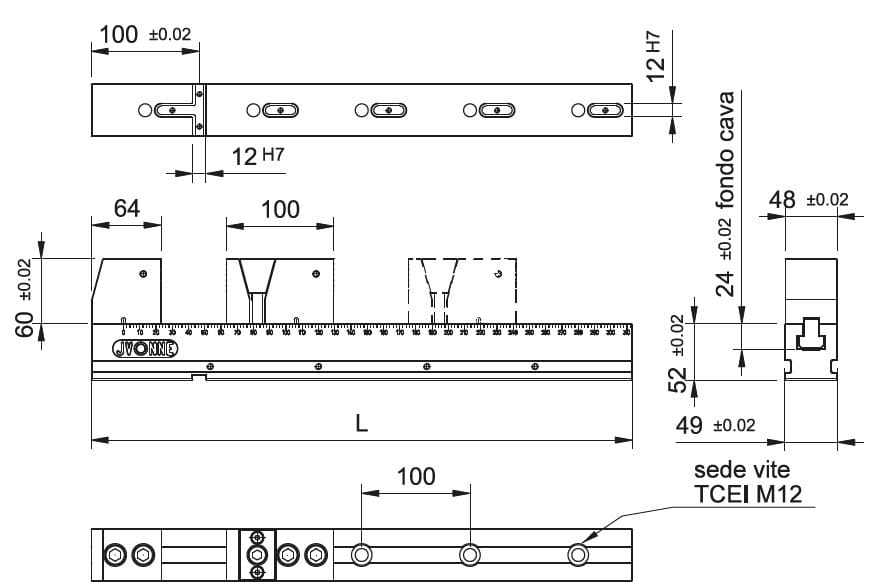

| Morsa Multipresa taglia 50 completo di n° 1 presa pezzo TIPO "AW" (traslante) corsa 4mm | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| COD | L | 1pz/mm | 2pz/mm | 3pz/mm | 4pz/mm | 5pz/mm | 6pz/mm | 7pz/mm | 8pz/mm | 9pz/mm | daN-Kg |
| J50400AW | 400 | 0-235 | 0-68 | 0-11 | 7,5 | ||||||
| J50500AW | 500 | 0-335 | 0-117 | 0-45 | 0-9 | 9 | |||||
| J50600AW | 600 | 0-435 | 0-167 | 0-76 | 0-33 | 0-7 | 10,5 | ||||
| J50700AW | 700 | 0-535 | 0-218 | 0-111 | 0-58 | 0-27 | 0-5 | 12 | |||
| J50800AW | 800 | 0-635 | 0-267 | 0-145 | 0-83 | 0-47 | 0-22 | 0-5 | 13 | ||
| J50900AW | 900 | 0-735 | 0-317 | 0-178 | 0-108 | 0-67 | 0-39 | 0-19 | 0-4 | 15 | |
| J97071W | Gruppo ganascia fissa di testa aggiuntiva (additional head jaw unit) | 0,6 | |||||||||
| J50001AW | Gruppo di spinta aggiuntivo (additional pushing unit) | 1,5 | |||||||||
| Multi-grip vice size 50 with 1 workpiece grip TYPE "AW" (with step) 4mm travel | |||||||||||
