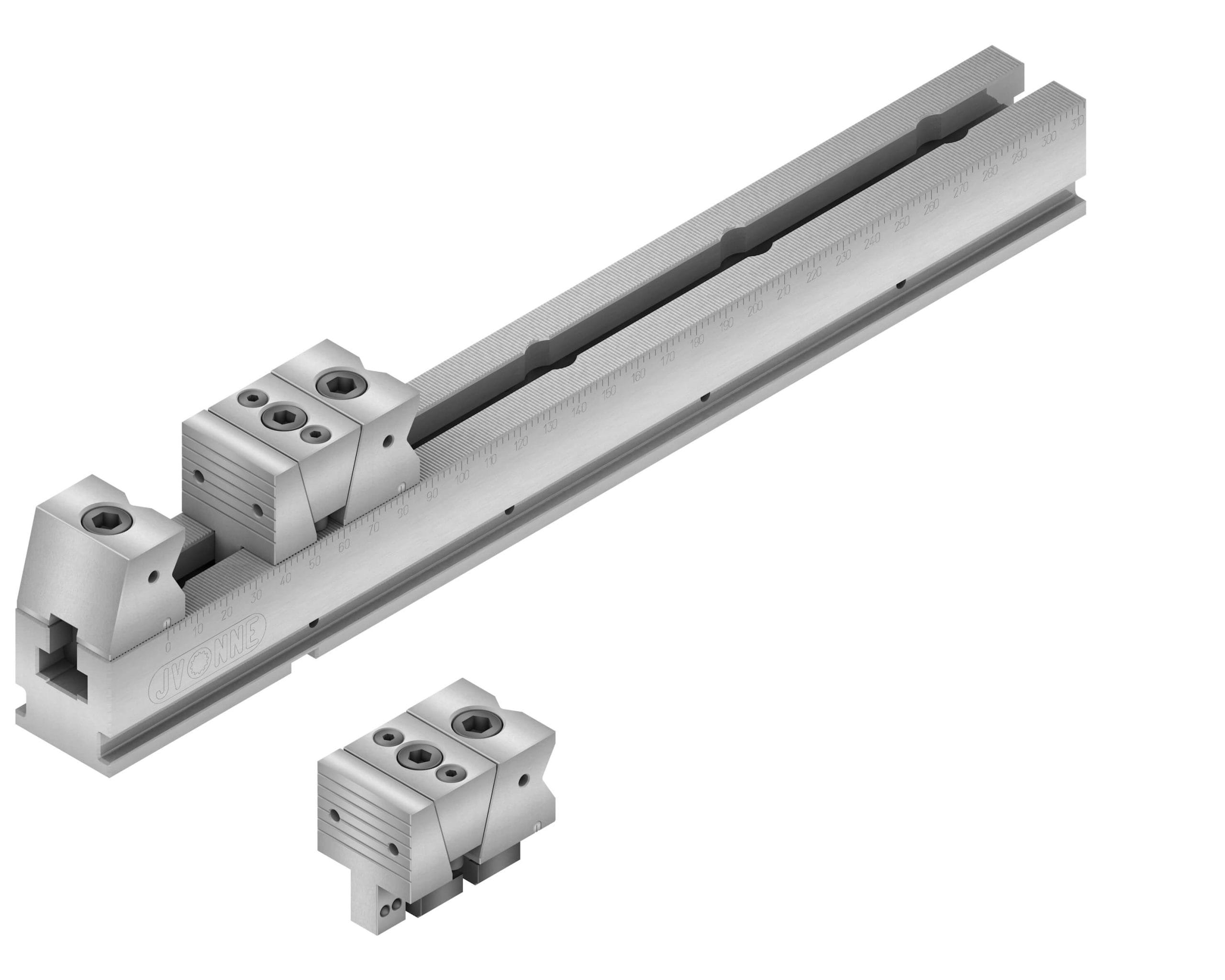

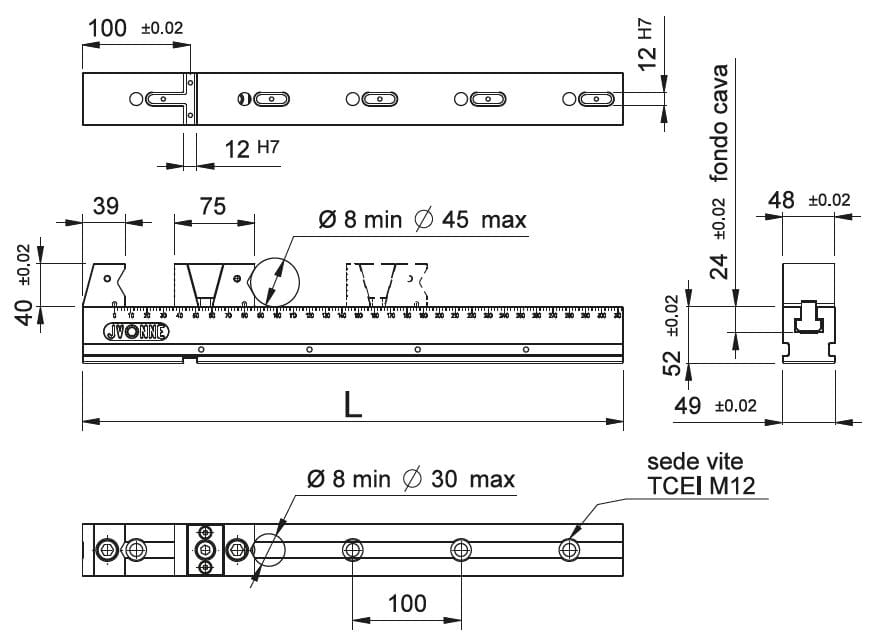

| Morsa Multipresa taglia 80 completo di n° 1 presa pezzo TIPO "F" (per tondi) corsa 4mm | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| COD | L | 1pz/mm | 2pz/mm | 3pz/mm | 4pz/mm | 5pz/mm | 6pz/mm | 7pz/mm | 8pz/mm | 9pz/mm | daN-Kg |
| J50400F | 400 | 0-285 | 0-105 | 0-44 | 0-14 | 7,5 | |||||
| J50500F | 500 | 0-385 | 0-155 | 0-78 | 0-39 | 0-16 | 9 | ||||
| J50600F | 600 | 0-485 | 0-205 | 0-111 | 0-64 | 0-36 | 0-18 | 0-4 | 10,5 | ||
| J50700F | 700 | 0-585 | 0-255 | 0-144 | 0-89 | 0-56 | 0-34 | 0-18 | 0-7 | 12 | |
| J50800F | 800 | 0-685 | 0-305 | 0-178 | 0-114 | 0-76 | 0-51 | 0-33 | 0-19 | 0-9 | 13 |
| J50900F | 900 | 0-785 | 0-355 | 0-211 | 0-139 | 0-96 | 0-68 | 0-47 | 0-32 | 0-20 | 15 |
| J97059 | Gruppo ganascia fissa per tondi di testa aggiuntiva (additional head jaw unit) | 0,5 | |||||||||
| J80001F | Gruppo di spinta aggiuntivo (additional pushing unit) | 1,2 | |||||||||
| Multi-grip vice size 50 with 1 workpiece grip TYPE "F" (for bars) 4mm travel | |||||||||||
Jvonne ensures a complete support service: from the first contact to the delivery of the machinery, from the installation to the start-up of the machine or plant.
Contact us to find out more!
